Draeger Portable Gas Detection

Dräger handheld gas detectors offer precise, reliable, and multi-functional measurement for over 256 toxic industrial chemicals. Personal gas detectors are used across a diverse range of applications like workplace monitoring, confined space monitoring, area monitoring, leak detection and more. The Dräger portfolio of handheld gas detectors contain single-gas and multi-gas detectors and gas detector tubes as well as calibration and calibration/bump testing equipment and software packages.

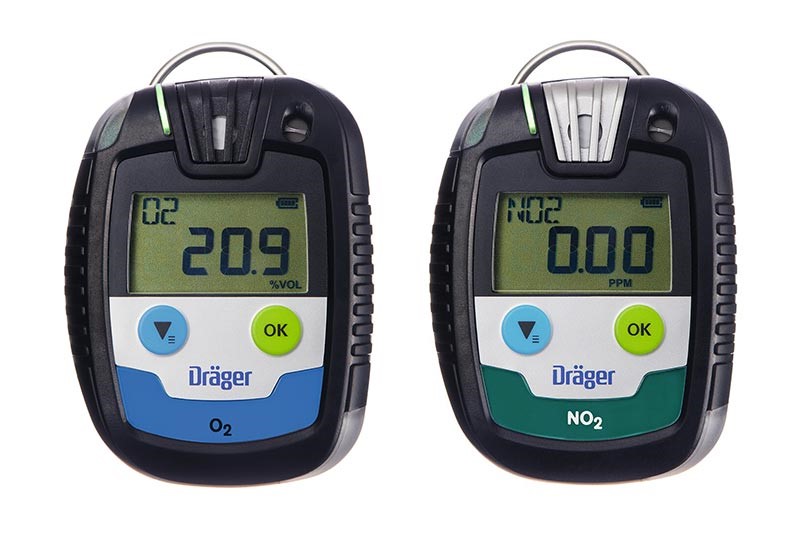

Single Gas Monitor Standard Features

Single gas detectors, often called personal air monitors, are the right solution for monitoring only one hazardous gas. Due to their portability, single gas monitors can be easily carried on your work clothes.

Single gas monitor standard features:

Powerful & durable reliable & accurate sensors
User-friendly display and handling with clear labeling
Weatherproof, shock-proof, chemical resistant housing
360 deg multi-function alarm
Data and event logger for analyses and reports
Long-lasting battery life
Up to 5-year warranty

	PAC 8000	PAC 6500	Pac 6000	X-am 5100

Measurable Gases	NO, CO2, CL2, HCN, NH3, PH3, OV, OV-A, NO2 LC, Ozone, Phosgene	CO, O2, H2S, SO2	CO, O2, H2S, SO2	H2O2S, HF/HCL, Hydrazine
Lifetime	Unlimited	Unlimited	2-years	Unlimited
Temp range	-40°C - 55°C	-40°C - 55°C	-40°C - 55°C	-20°C - 55°C
Battery Service life	2 years (24/7)	2 years (24/7) *1-year O2	2 years (24/7) *1-year O2	Rechargeable
IP Rating	IP 68	IP 68	IP 68	IP 67
Weight	.23 lb.	.23 lb.	.23 lb.	.49 lb.
D-light	X	X	X	X
TLV/STEL	X	X	X	X
Peak	X	X	X	X
Alarm Hold	X	X	X

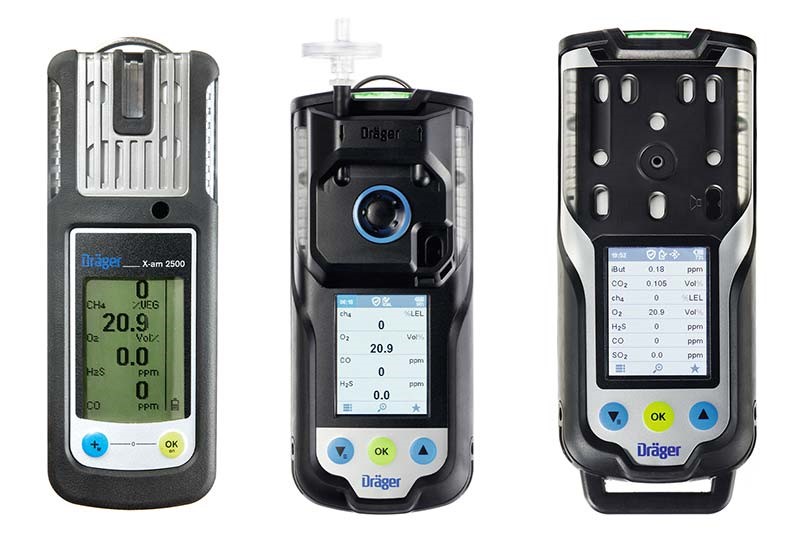

Multi-Gas Monitors

Dräger multi-gas detectors can measure up to 7 hazardous substances at once - toxic and flammable gases, as well as vapors and oxygen. The portable multi-gas monitors are mainly intended for personal air monitoring but can also be used for clearance measurement in confined spaces (with special accessories) and even for area monitoring. Dräger X-am series monitors are capable of both diffusion and pump operation.

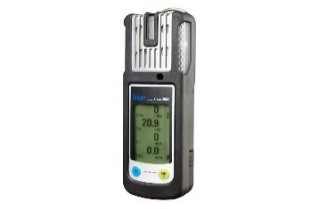

	X-am 8000	X-am 3500	X-am 5000	X-am 2500

Measurable Gases	49 Sensor options	EX, O2, CO, H2S, NO2, SO2	43 Sensor options	EX, O2, CO, H2S, NO2, SO2
Sensor ports	5	4	4	4
Number of gases	1 to 7	1 to 4	1 to 5	1 to 4
Sensor technology	CAT + IR + PID + EC	CAT + EC	CAT + EC	CAT + EC
Operating time	24 hours	24 hours	12 hours	12 hours
Dimensions	.25 x .59 x .14 ft	.25 x .59 x .14 ft	.16 x .43 x .14 ft	.16 x .43 x .14 ft
Weight	1.32 lb	1.1 lb	.49 lb	1.1 lb
Battery type	Li-Ion	Li-Ion	Ni-Mh	Ni-Mh
IP rating	68	68	67	67
Pump	Internal	Internal	External	External
X-Dock Calibration	yes	yes	yes	yes

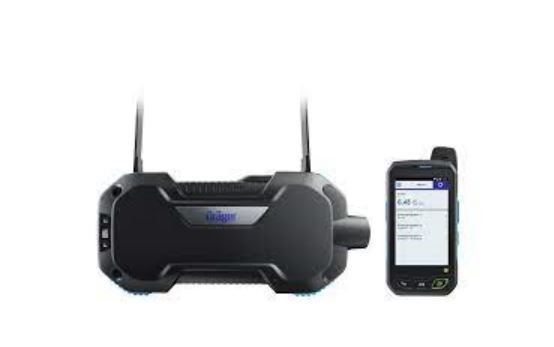

Drager X-PID 9000/9500

The selective PID gas measurement device is ideal for users who frequently test for hazardous toxic substances. Benzene, butadiene and other volatile organic compounds (VOCs) are carcinogenic even in the smallest concentrations. Selective measurement is necessary because other gases and vapors are often also present. The gas measurement device allows for short test times and laboratory-quality results.

CALIBRATION & BUMP TESTING

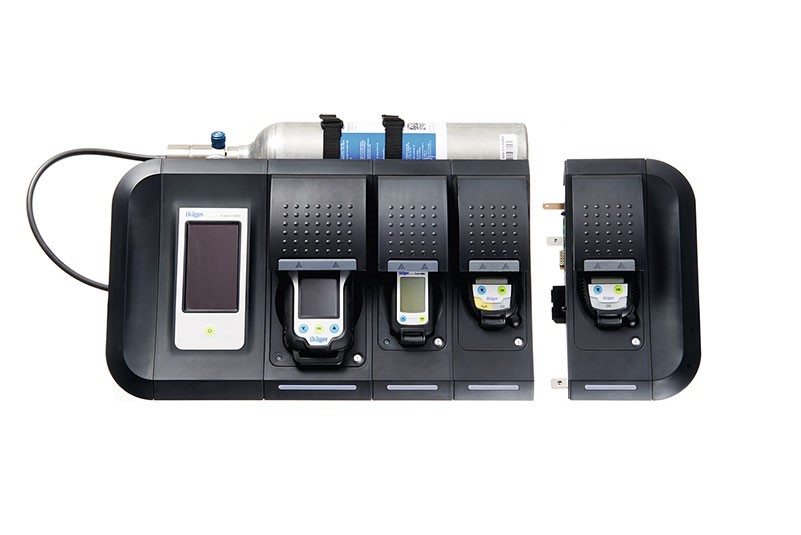

Drager x-dock

Functionality (bump) tests and calibration of gas detectors ensure the safe operation and proper function of gas monitoring equipment. Drager’s bump test and gas monitor calibration portfolio enables you to carry out those tests easily and quickly to reduce bump test gas consumption, have short testing times with comprehensive documentation and evaluation.

Features & Benefits

Master controller station with intuitive touchscreen operation where up to three test routines can be configured.
Testing is as simple as inserting your Dräger gas detection instrument and closing the lid. The X-dock® immediately detects all sensor combinations and automatically tests and adjusts when all the required test gases are connected.
All generated data is documented and collected in the database where the X-dock Manager software produces detailed evaluation of the data and presents the information in various graphics and statistical models.
Multiple X-dock® systems can be connected in a network giving all users access to data in a central database.
X-Dock is available in multiple configurations to allow for flexibility, depending on the type of detection instrumentation being used. The X-dock® 5300 includes a master controller with a single module for an X-am or Pac gas detector.
The X-dock® 6300 and 6600 can be configured freely with up to 10 modules for a combination of Draeger multi and single gas detectors
With a significantly reduced gas flow per module, you save money on test gases. Shorter testing times reduce overall maintenance requirements.
Increase productivity by testing multiple gas detection instruments simultaneously or independently of each other.
Automatic bump testing also saves time with 8 to 15 second tests.
